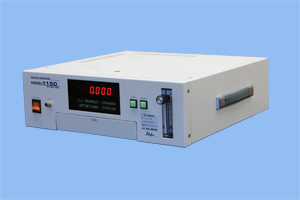

| Principle of Measurement | UV absorption |
| Measuring range | Low range: 0-0.2ppm(0.000-0.200ppm) High range: 0-0.5ppm(0.000-0.500ppm) |
| Sensitivity | 1ppb |
| Flow rate | 1.5 l/min to 2 l/min. |
| Accuracy | +/-0.5 %of F.S. (Full Scale) |
| Linearity | +/- 0.5%of F.S. |
| Repeatability | +/- 0.5%of F.S. |
| Zero Drift | +/- 0.5%of F.S. |
| Span Drift | +/- 0.5%of F.S. |
| Measuring Interval | Every 12 sec. | Output | RS-232C: (Option) Analog: 0-1VDC Instant Output 0-1VDC An hour average Output Relay Contact: (Max load) AC100V 50mA, DC24V 200mA |
| Fittings | φ6 (1/4”) Swgelock (Teflon) |
| Power | AC 100 V, 50/60 Hz, 70 VA |
| Dimensions (mm) | 430 (W) x 132 (H) x 410 (D) |
| Weight | Approx. 10 kg |

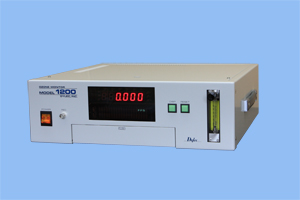

| Principle of Measurement | UV absorption |
| Measuring range | Low range: 0-1ppm(0.000-1.000ppm) High range: 0-20ppm(0.00-20.00ppm) |
| Sensitivity | 0.001 ppm(1 ppb) |
| Flow rate | 1.5 l/min to 2 l/min. |
| Accuracy | +/-0.5 %of F.S. (Full Scale) |
| Linearity | +/- 0.5%of F.S. |
| Repeatability | +/- 0.5%of F.S. |
| Zero Drift | +/- 0.5%of F.S. |
| Span Drift | +/- 0.5%of F.S. |
| Measuring Interval | Every 12 sec. The special interval from 13 to 30 sec. is available up on request. |
| Output | RS-232C: (Option) Analog: 0-1VDC Instant Output Relay Contact: (Max load) AC100V 200mA, DC24V 1A |
| Fittings | φ6 (1/4”) Swgelock (Teflon) |
| Power | AC 100 V, 50/60 Hz, 70 VA |
| Dimensions (mm) | 430 (W) x 132 (H) x 410 (D) |
| Weight | Approx. 10 kg |

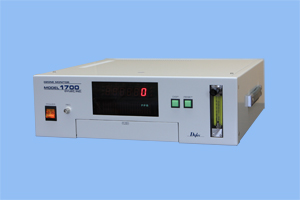

| Principle of Measurement | UV absorption |
| Measuring range | Low range: 0-20g/m3(0.00-20.00g/m3) High range: 0-200g/m3(0.0-200.0g/m3) or Low range: 0-10,000ppm(0-10000ppm) High range: 0-100,000ppm(0-100000ppm) |
| Sensitivity | 1 ppm |
| Flow rate | 0.5 l/min to 1.5 l/min. |
| Accuracy | +/-0.5 %of F.S. (Full Scale) |
| Linearity | +/- 1%of F.S. |
| Repeatability | +/- 1%of F.S. |
| Zero Drift | +/- 0.5%of F.S. |
| Span Drift | +/- 0.5%of F.S. |
| Measuring Interval | Every 12 sec. The special interval from 13 to 30 sec. is available up on request. |
| Output | RS-232C: (Option) Analog: 0-1VDC Instant Output Relay Contact: (Max load) AC100V 50mA, DC24V 200mA |
| Fittings | φ6 (1/4”) Swgelock (Teflon) |
| Power | AC 100 V, 50/60 Hz, 70 VA |
| Dimensions (mm) | 430 (W) x 132 (H) x 410 (D) |
| Weight | Approx. 10 kg |

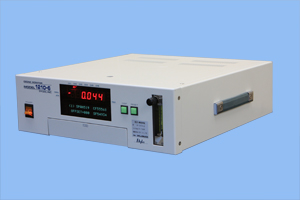

| Principle of Measurement | UV absorption |
| Measuring range | Low range: 0-1ppm(0.000-1.000ppm) High range: 0-10ppm(0.00-10.00ppm) |
| Sensitivity | 0.01 ppm (10 ppb) |
| Flow rate | 0.5 l/min to 1.5 l/min. |
| Accuracy | +/- 2 % of F.S. (Full Scale) |
| Linearity | +/- 1%of F.S. |
| Repeatability | +/- 2%of F.S. |
| Zero Drift | +/- 1%of F.S. |
| Span Drift | +/- 1%of F.S. |
| Measuring Interval | Every 12 sec. The special interval from 13 to 30 sec. is available up on request. |
| Channel Shift Interval | Auto Mode: 01-99 min. Users may program the intervals for each channel separately. Remote Mode: Remotely triggered input from the PLC. NOTE: This is an optional function. Manual Mode: By manual shift key (“→” key) |
| Output | RS-232C: (Option) Analog: 0-1VDC Instant Output Relay Contact: (Max load) AC100V 100mA, DC24V 200mA |
| Fittings | φ6 (1/4”) Swgelock (Teflon) |
| Power | AC 100 V, 50/60 Hz, 150 VA |
| Dimensions (mm) | 430 (W) x 132 (H) x 450 (D) |
| Weight | Approx. 15 kg |
